Ubiquiti

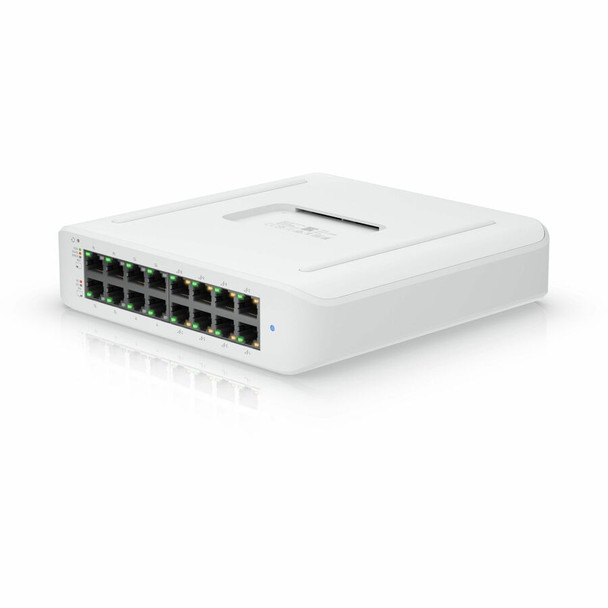

Ubiquiti (USW-LITE-16-POE) UBIQUITI UniFi SWITCH LITE 16 POE, 16 GbE PORT (8 PoE+), 45W, WALL MOUNT KIT INCLUDED, 1YR

(No reviews yet) Write a Review
SKU:
USW-LITE-16-POE
MPN:
USWLite16POE
Availability:
In Stock
  • Ubiquiti (USW-LITE-16-POE) UBIQUITI UniFi SWITCH LITE 16 POE, 16 GbE PORT (8 PoE+), 45W, WALL MOUNT KIT INCLUDED, 1YR
  • Ubiquiti (USW-LITE-16-POE) UBIQUITI UniFi SWITCH LITE 16 POE, 16 GbE PORT (8 PoE+), 45W, WALL MOUNT KIT INCLUDED, 1YR
  • Ubiquiti (USW-LITE-16-POE) UBIQUITI UniFi SWITCH LITE 16 POE, 16 GbE PORT (8 PoE+), 45W, WALL MOUNT KIT INCLUDED, 1YR
  • Ubiquiti (USW-LITE-16-POE) UBIQUITI UniFi SWITCH LITE 16 POE, 16 GbE PORT (8 PoE+), 45W, WALL MOUNT KIT INCLUDED, 1YR
  • Ubiquiti (USW-LITE-16-POE) UBIQUITI UniFi SWITCH LITE 16 POE, 16 GbE PORT (8 PoE+), 45W, WALL MOUNT KIT INCLUDED, 1YR
  • Ubiquiti (USW-LITE-16-POE) UBIQUITI UniFi SWITCH LITE 16 POE, 16 GbE PORT (8 PoE+), 45W, WALL MOUNT KIT INCLUDED, 1YR
  • Ubiquiti (USW-LITE-16-POE) UBIQUITI UniFi SWITCH LITE 16 POE, 16 GbE PORT (8 PoE+), 45W, WALL MOUNT KIT INCLUDED, 1YR
MSRP: $449.00
$429.00 Inc. GST
MSRP: $408.18
$390.00 Ex. GST
— You save $20.00
Frequently bought together:

Description

Description
Manufacturer: Ubiquiti Inc.
Manufacturer Part Number: USW-LITE-16-POE
Manufacturer Website Address: http://www.ui.com
Brand Name: Ubiquiti
Product Model: USW-Lite-16-PoE
Product Name: USW-Lite-16-PoE Ethernet Switch
Product Type: Ethernet Switch
Technical Information
Features:
  • Flow Control
  • Port Mirroring
  • Virtual LAN (VLAN)
  • LED Indicator
  • Loop Protection
  • DHCP Snooping
  • Access Control List
  • IGMP Snooping
  • Reset Button
Interfaces/Ports
Total Number of Network Ports: 16
Network (RJ-45): Yes
Port/Expansion Slot Details:
  • 8 x Gigabit Ethernet PoE+
  • 8 x Gigabit Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Maximum Data Transfer Rate: 128 MB/s
Network & Communication
Layer Supported: 2
Networking Standards: IEEE 802.1x
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 45 W
Input Voltage:
  • 120 V AC
  • 230 V AC
Frequency:
  • 50 Hz
  • 60 Hz
Power Source: AC/DC
Power Consumption: 60 W
Physical Characteristics
Product Material: Polycarbonate
Form Factor:
  • Desktop
  • Compact
  • Wall Mountable
Height: 44 mm
Width: 192 mm
Depth: 185 mm
Weight (Approximate): 1.20 kg
Miscellaneous
Application/Usage:
  • Network
  • Wireless Access Point
  • Security Camera
Additional Information:
  • Switching Capacity: 32 Gbps
  • Total Non-Blocking Throughput: 16 Gbps
  • Forwarding Rate: 24 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 8,000
  • Packet Buffer Size: 0.5 MB
  • Management: Ethernet
  • Heat Dissipation: 51.2 (Excluding PoE Output)
  • Ambient Operating Temperature: -15 to 40° C (5 to 104° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • NDAA Compliant: Yes
  • LACP Port Aggregation: Yes
  • STP & RSTP: Yes
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
  • MAC-Based ACLs & Device Isolation: Yes
  • DHCP Snooping & Guarding: Yes
  • Egress Rate Limit: Yes
  • Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes
  • MAC Address Blocking: Yes
  • IP-Based ACLs & Network Isolation: Yes
  • MAC-Based Port Restriction: Yes
  • Port Isolation: Yes
  • Jumbo Frames: Yes
  • LLDP-MED: Yes
  • Voice VLAN: Yes
  • Virtual Network Override: Yes
