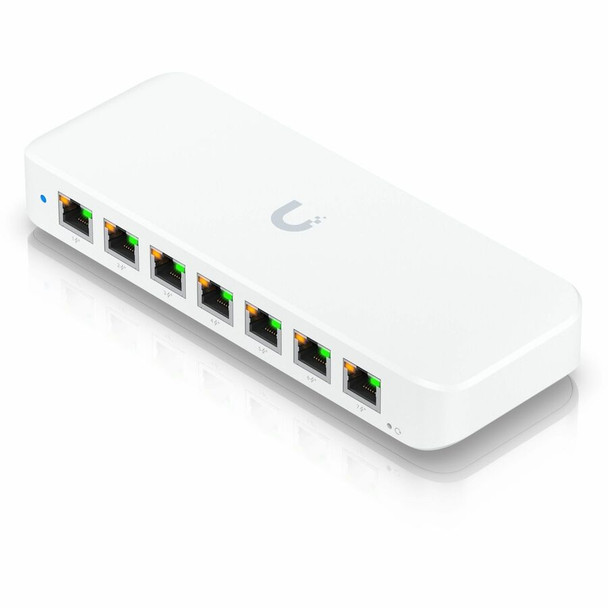

Ubiquiti (USW-ULTRA) UBIQUITI UniFi SWITCH ULTRA, 42W, 8 GbE PORT(7 PoE+; 1 PoE++ ), LAYER 2, COMPACT, 1YR

(No reviews yet) Write a Review
SKU:
USW-ULTRA
MPN:
USWUltra
Availability:
In Stock
  • Ubiquiti (USW-ULTRA) UBIQUITI UniFi SWITCH ULTRA, 42W, 8 GbE PORT(7 PoE+; 1 PoE++ ), LAYER 2, COMPACT, 1YR
  • Ubiquiti (USW-ULTRA) UBIQUITI UniFi SWITCH ULTRA, 42W, 8 GbE PORT(7 PoE+; 1 PoE++ ), LAYER 2, COMPACT, 1YR
  • Ubiquiti (USW-ULTRA) UBIQUITI UniFi SWITCH ULTRA, 42W, 8 GbE PORT(7 PoE+; 1 PoE++ ), LAYER 2, COMPACT, 1YR
  • Ubiquiti (USW-ULTRA) UBIQUITI UniFi SWITCH ULTRA, 42W, 8 GbE PORT(7 PoE+; 1 PoE++ ), LAYER 2, COMPACT, 1YR
  • Ubiquiti (USW-ULTRA) UBIQUITI UniFi SWITCH ULTRA, 42W, 8 GbE PORT(7 PoE+; 1 PoE++ ), LAYER 2, COMPACT, 1YR
$232.10 Inc. GST
$211.00 Ex. GST
Frequently bought together:

Description

Description
Manufacturer: Ubiquiti Inc.
Manufacturer Part Number: USW-Ultra
Manufacturer Website Address: http://www.ui.com
Brand Name: Ubiquiti
Product Line: Ultra
Product Model: USW-Ultra
Product Name: USW-Ultra Ethernet Switch
Product Type: Ethernet Switch
Technical Information
Features:
  • Flow Control
  • Port Mirroring
  • Virtual LAN (VLAN)
  • Loop Protection
  • Reset Button
  • LED Indicator
Interfaces/Ports
Total Number of Network Ports: 8
Network (RJ-45): Yes
Port/Expansion Slot Details:
  • 7 x Gigabit Ethernet PoE+
  • 1 x Gigabit Ethernet PoE++
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Maximum Data Transfer Rate: 128 MB/s
Network & Communication
Layer Supported: 3
Networking Standards: IEEE 802.1x
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 42 W
Input Voltage:
  • 50 V DC
  • 57 V DC
Power Source:
  • AC/DC
  • PoE++
Power Consumption: 210 W
Physical Characteristics
Product Material: Polycarbonate
Form Factor:
  • Desktop
  • Wall Mountable
  • Compact
  • Magnetic Mount
Height: 33 mm
Width: 203 mm
Depth: 76 mm
Weight (Approximate): 320 kg
Miscellaneous
Application/Usage:
  • Network
  • Wireless Access Point
  • Security Camera
Additional Information:
  • Switching Capacity: 16 Gbps
  • Total Non-Blocking Throughput: 8 Gbps
  • Forwarding Rate: 12 Mpps
  • Supported VLANs: 256
  • MAC Address Table Size: 4,000
  • Management: Ethernet
  • Heat Dissipation: 15 BTU/hr (Excluding PoE Output)
  • Ambient Operating Temperature: PoE++ input: -30 to 60° C (-22 to 140° F), 60W AC adapter input: -20 to 45° C (-4 to 113° F), 210W AC adapter input: -20 to 60° C (-4 to 140° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • NDAA Compliant: Yes
  • STP & RSTP: Yes
  • Egress Rate Limit: Yes
  • Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes
  • Port Isolation: Yes
  • Jumbo Frames: Yes
