Ubiquiti

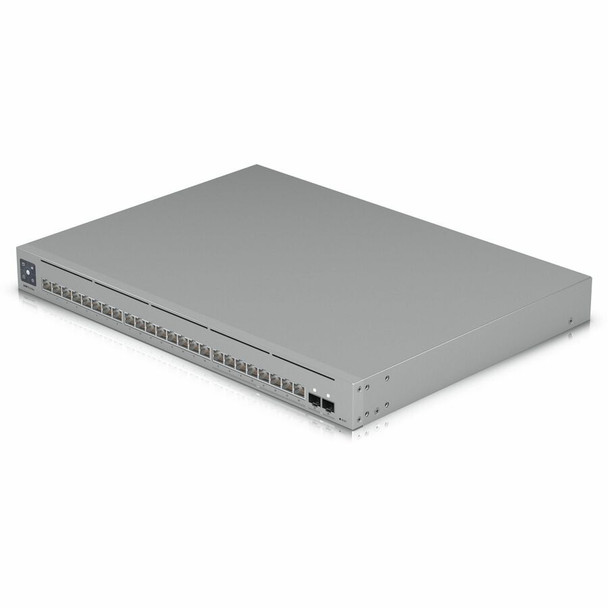

Ubiquiti (USW-PRO-MAX-24) UBIQUITI UniFi SWITCH PRO MAX 24, 24 PORT, 16 xGbE RJ45, 8 x 2.5 Gbe RJ45, 2x 10G SFP+,, 1

(No reviews yet) Write a Review
SKU:
USW-PRO-MAX-24
MPN:
USWProMax24
Availability:
On backorder. Usual lead time is 3 weeks. Contact Us for Availability
  • Ubiquiti (USW-PRO-MAX-24) UBIQUITI UniFi SWITCH PRO MAX 24, 24 PORT, 16 xGbE RJ45, 8 x 2.5 Gbe RJ45, 2x 10G SFP+,, 1
  • Ubiquiti (USW-PRO-MAX-24) UBIQUITI UniFi SWITCH PRO MAX 24, 24 PORT, 16 xGbE RJ45, 8 x 2.5 Gbe RJ45, 2x 10G SFP+,, 1
  • Ubiquiti (USW-PRO-MAX-24) UBIQUITI UniFi SWITCH PRO MAX 24, 24 PORT, 16 xGbE RJ45, 8 x 2.5 Gbe RJ45, 2x 10G SFP+,, 1
  • Ubiquiti (USW-PRO-MAX-24) UBIQUITI UniFi SWITCH PRO MAX 24, 24 PORT, 16 xGbE RJ45, 8 x 2.5 Gbe RJ45, 2x 10G SFP+,, 1
  • Ubiquiti (USW-PRO-MAX-24) UBIQUITI UniFi SWITCH PRO MAX 24, 24 PORT, 16 xGbE RJ45, 8 x 2.5 Gbe RJ45, 2x 10G SFP+,, 1
  • Ubiquiti (USW-PRO-MAX-24) UBIQUITI UniFi SWITCH PRO MAX 24, 24 PORT, 16 xGbE RJ45, 8 x 2.5 Gbe RJ45, 2x 10G SFP+,, 1
  • Ubiquiti (USW-PRO-MAX-24) UBIQUITI UniFi SWITCH PRO MAX 24, 24 PORT, 16 xGbE RJ45, 8 x 2.5 Gbe RJ45, 2x 10G SFP+,, 1
  • Ubiquiti (USW-PRO-MAX-24) UBIQUITI UniFi SWITCH PRO MAX 24, 24 PORT, 16 xGbE RJ45, 8 x 2.5 Gbe RJ45, 2x 10G SFP+,, 1
MSRP: $959.00
$950.40 Inc. GST
MSRP: $871.82
$864.00 Ex. GST
— You save $8.60
Frequently bought together:

Description

Description
Manufacturer: Ubiquiti Inc.
Manufacturer Part Number: USW-Pro-Max-24
Manufacturer Website Address: http://www.ui.com
Brand Name: Ubiquiti
Product Line: Pro Max
Product Model: USW-Pro-Max-24
Product Name: USW-Pro-Max-24 Ethernet Switch
Product Type: Ethernet Switch
Technical Information
Features:
  • Access Control List
  • IGMP Snooping
  • Flow Control
  • Port Mirroring
  • Virtual LAN (VLAN)
  • Loop Protection
  • Reset Button
  • DHCP Relay
  • DHCP Snooping
Interfaces/Ports
Total Number of Network Ports: 24
Network (RJ-45): Yes
Port/Expansion Slot Details:
  • 16 x Gigabit Ethernet Network
  • 8 x 2.5 Gigabit Ethernet Network
  • 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
  • 2.5 Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10GBase-X
  • 2.5GBase-T
Maximum Data Transfer Rate: 1.25 GB/s
I/O Expansions
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 3
Networking Standards: IEEE 802.1x
Management & Protocols
Manageable: Yes
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Frequency:
  • 50 Hz
  • 60 Hz
Power Source:
  • USB
  • AC/DC
Power Consumption: 50 W
Physical Characteristics
Product Material: SGCC Steel
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 44 mm
Width: 442 mm
Depth: 325 mm
Weight (Approximate): 4.20 kg
Miscellaneous
Application/Usage: Network
Additional Information:
  • Switching Capacity: 112 Gbps
  • Total Non-Blocking Throughput: 56 Gbps
  • Forwarding Rate: 83 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 16,000
  • Management: Ethernet, AR
  • Heat Dissipation: 170.6 BTU/hr
  • Supported Rack Depth: 400~1200 mm (15.7-47.2")
  • LCM Display: 1.3" touchscreen
  • ESD Protection: Air: ± 16kV, contact: ± 12kV
  • Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
  • Ambient Operating Humidity: 10 to 90% noncondensing
  • NDAA Compliant: Yes
  • DHCP Server (Local Networks): Yes
  • Inter-VLAN Routing (Local Networks): Yes
  • Static Routing (Local Networks): Yes
  • LACP Port Aggregation: Yes
  • STP & RSTP: Yes
  • QoS (DSCP): Yes
  • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
  • Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes
  • MAC-Based ACLs & Device Isolation: Yes
  • DHCP Snooping & Guarding: Yes
  • Egress Rate Limit: Yes
  • Storm Control: Yes
  • Multicast & Broadcast Rate Limiting: Yes
  • MAC Address Blocking: Yes
  • IP-Based ACLs & Network Isolation: Yes
  • MAC-Based Port Restriction: Yes
  • Port Isolation: Yes
  • Jumbo Frames: Yes
  • LLDP-MED: Yes
  • Voice VLAN: Yes
  • Virtual Network Override: Yes
