HPE

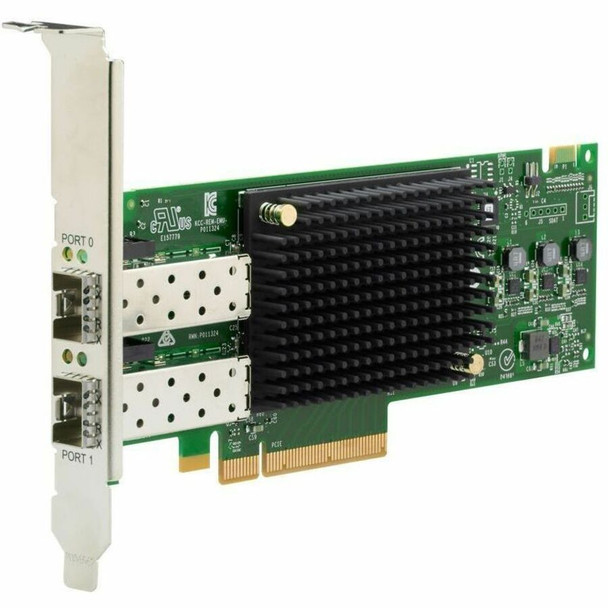

HPE (S4T09A) HPE SN1720E 64Gb 2p FC HBA
- SKU:
- S4T09A
- MPN:
- S4T09A
- Availability:
- On backorder. Usual lead time is 3 weeks. Contact Us for Availability
Description
| Description | |
| Manufacturer: | Hewlett Packard Enterprise |
| Manufacturer Part Number: | S4T09A |
| Manufacturer Website Address: | https://www.hpe.com/au/ |
| Brand Name: | HPE |
| Product Model: | SN1720E |
| Product Name: | SN1720E 64Gb 2-port Fibre Channel Secure Host Bus Adapter |
| Marketing Information: | HPE SN1700 series 64Gb Fibre Channel Host Bus Adapter | Family Overview A Fibre Channel Host Bus Adapter is a server peripheral designed to be installed in a server and allows the transport of data to a consolidated storage device like an HPE Flash Array. The Fibre Channel Host Bus Adapter is externally coupled to a Fibre Channel switch which builds a Fibre Channel network allowing many servers access to the shared storage array. With a Fibre Channel HBA installed in every participating server, the resulting configuration is called a Storage Area Network or SAN based on Fibre Channel. The HPE 64GFC Host Bus Adapters bring datacenter infrastructure components to a higher level of performance and efficiency with the ability to deliver twice the bandwidth performance of 32Gb HBAs. A 64GFC HBA purchased today is backward compatible with 32Gb and 16Gb storage networks and will protect future investments. |
| Product Type: | Fibre Channel Host Bus Adapter |
| Technical Information | |
| Total Number of Fibre Channel Ports: | 2 |
| Host Interface: | PCI Express 4.0 x8 |
| Features: |
|
| Media & Performance | |
| Media Type Supported: | Optical Fiber |
| Fiber Optic Cable Core/Cladding Specification: | 50 µm |
| Fiber Mode Supported: | Multi-mode |
| Twisted Pair Cable Standard: | Multi-mode |
| Data Transfer Rate: | 64 Gbit/s |
| I/O Expansions | |
| Total Number of Expansion Slots: | 2 |
| Expansion Slot Type: | SFP+ |
| Physical Characteristics | |
| Form Factor: | Plug-in Card |
| Height: | 68.8 mm |
| Width: | 167.6 mm |
| Depth: | 10.9 mm |
| Miscellaneous | |
| Compatibility: |
|
| Operating System Compatibility: |
|
| Warranty | |
| Limited Warranty: | 3 Year |
