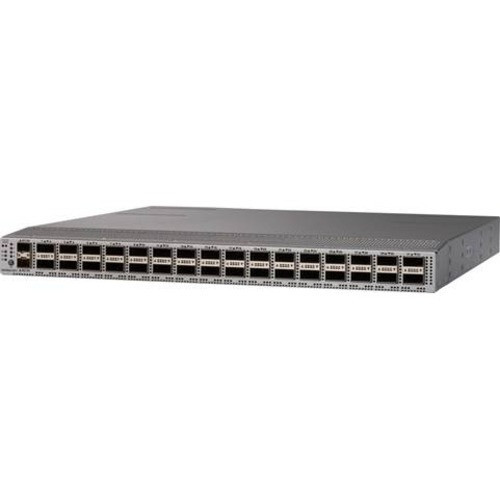

CISCO (N3K-C3132C-Z) Nexus 3132C 32x100G ports based on Trident3

The Cisco Nexus 3132C-Z is the 32-port 100-Gbps programmable architecture switch, enabled with major data center features designed for software-defined data centers. This 1-Rack-Unit (1RU) model offers wire-rate Layer 2 and 3 switching.

The Cisco Nexus 3132C-Z is a Quad Small Form-Factor Pluggable (QSFP) switch with 32 QSFP28 ports. Each QSFP28 port can operate at 10, 25, 40, 50, and 100 Gbps, up to a maximum of 128 x 25-Gbps ports.

It is a member of the Cisco Nexus 3100 platform and runs the industry-leading Cisco^®NX-OS Software operating system, providing customers with comprehensive features and functions that are widely deployed. The Cisco Nexus 3132C-Z supports both forward and reverse (port-side exhaust and port-side intake) airflow schemes with AC and DC power inputs.

The Cisco Nexus 3132C-Z has the following hardware configuration:

• 32 fixed 100-Gigabit Ethernet QSFP28 ports
• Beacon LED
• Environment LED
• Status LED
• Four lane-selected LEDs
• Dual redundant power supplies
• Redundant (3+1) fans
• Two 10-Gbps SFP ports
• One RJ45 console port
• One RJ45 and SFP management port
• One USB port

• 32 x 100 Gigabit Ethernet Expansion Slot
• 2 x 10 Gigabit Ethernet Expansion Slot

• 10 Gigabit Ethernet
• 100 Gigabit Ethernet

• 10GBase-X
• 100GBase-X
